5V Strip Kit Adalight For Arduino Uno To DIY Ambient Lighting Monitor Ambilight Set HTPC Dynamic Backlight Boblight With Power
1. LED strips should be supported by power supply, can not support led strip power by UNO, or will damege the UNO.
2. LED strip and UNO are all 5V, please do not connect them to other power supply.
1 piece individual led strip (Send length you select)
1 UNO Controller
1 Power supply
How to diy ambilight in 20 munites? -- This kit is for PC.

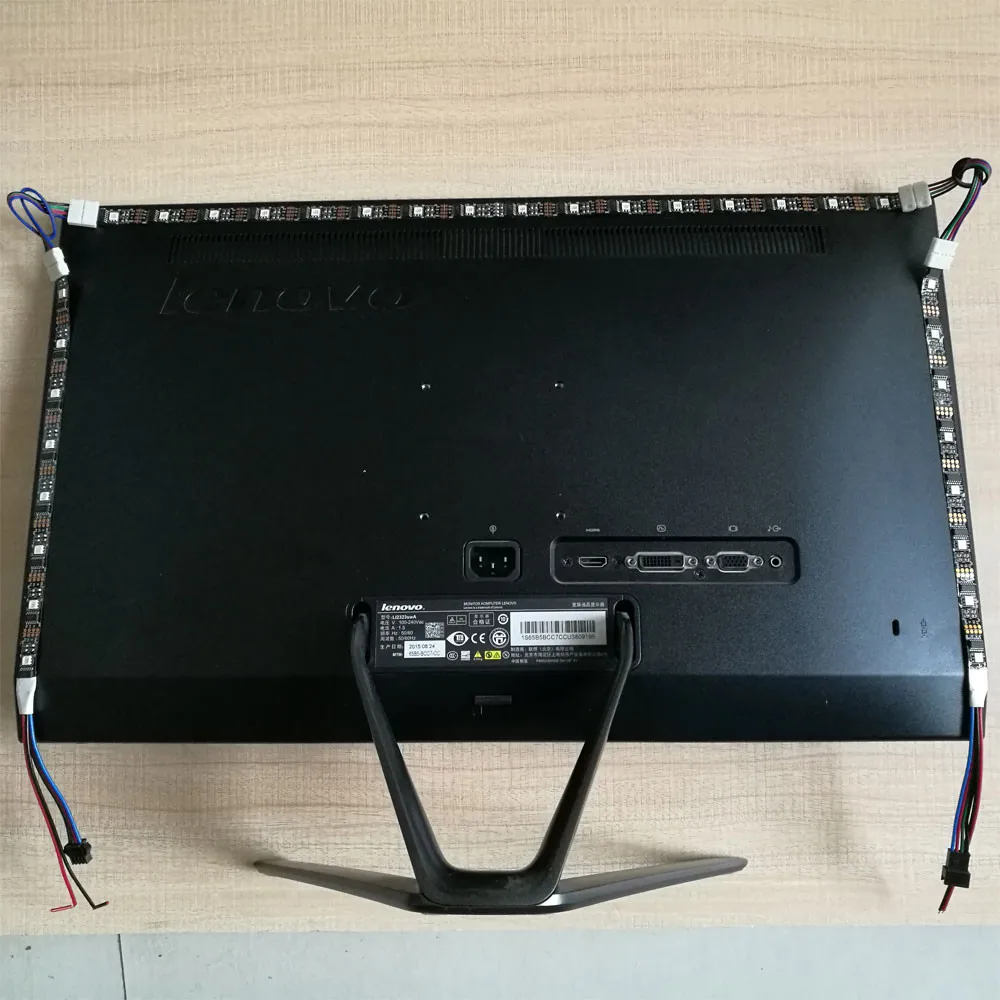

1. Adhesive led strips to every sides.

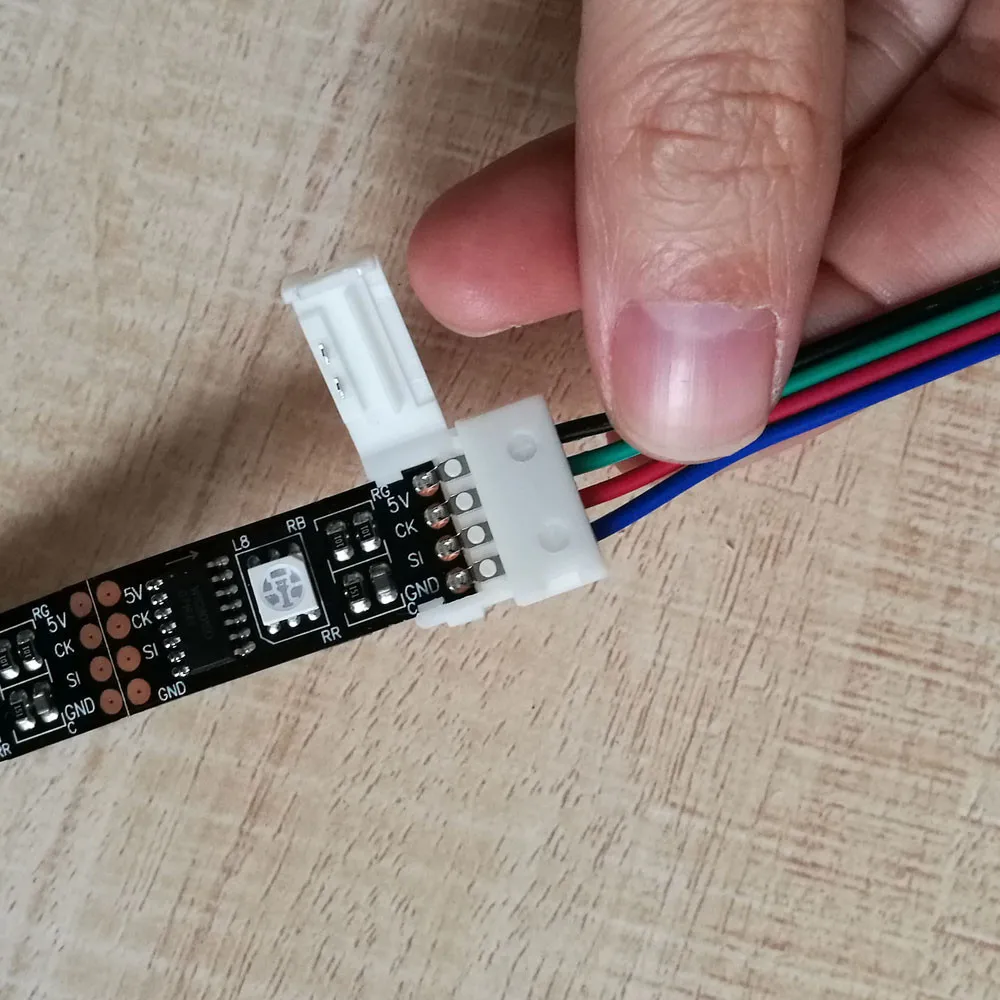

2. Connect the strip to controller and 5V power supply. The strip have 6 cables, 2 cables 5V, 2 cables GND, 1 SI, 1 CK.
1 GND connect to power supply -
1 5V connect to power supply +5V

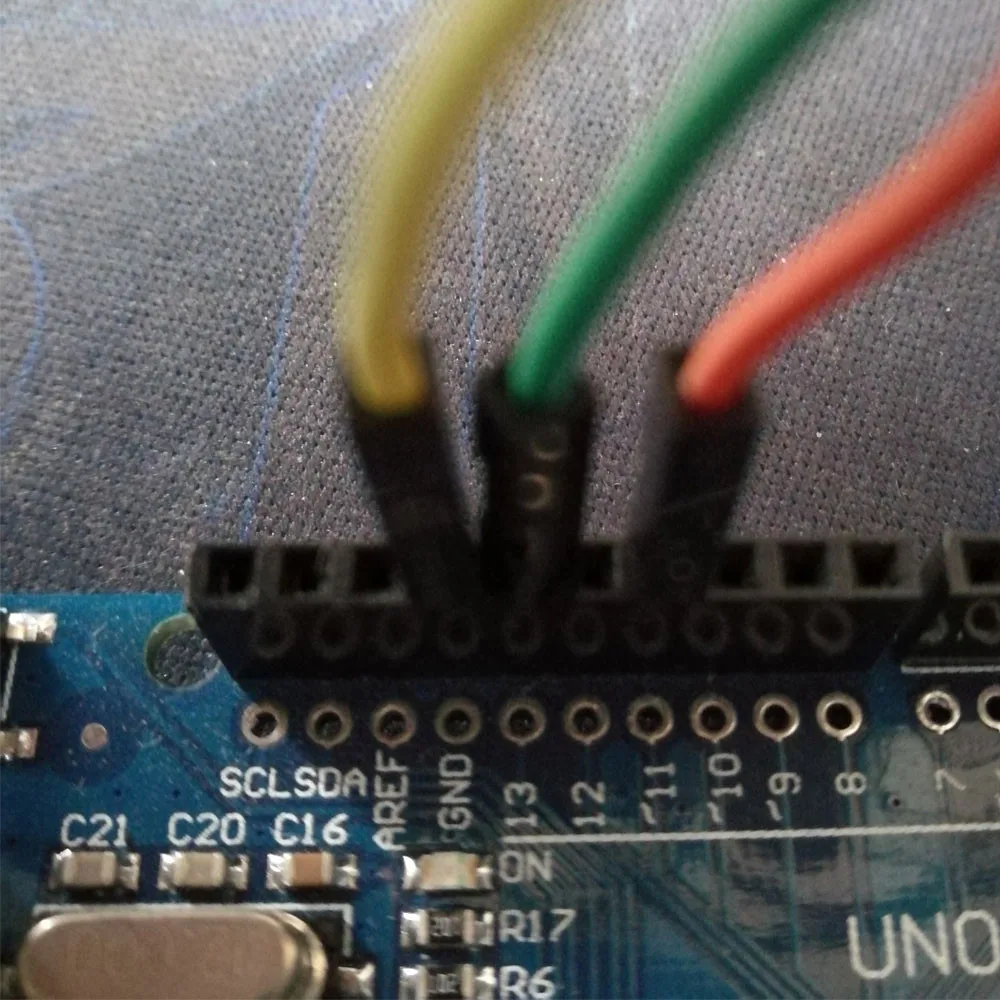

SI connect the controller 11
CK connect to controller 13
1 GND connect to controller GND
3. Install ambibox and setting. support Windows x32/x64 - XP/Vista/7/8
You will find it simple and cool. 2017 you should have a colorful life with your monitor. This kit for PC or HTPC.
Your attention please, Color options detail for:
Black: Black PCB
IP20 is non-waterproof
1m kit: 1m led strip + 1 controller +2 connector + 1 power supply
2m kit: 2m led strip + 1 controller +2 connector + 1 power supply
3m kit: 3m led strip + 1 controller +2 connector + 1 power supply
4m kit: 4m led strip + 1 controller +2 connector + 1 power supply
5m kit: 5m led strip + 1 controller +2 connector + 1 power supply
About led strip for use Suggestions / Notes:
First: Do not use the USB power source such as a computer USB, charging treasure USB, USB cell phone charger, and other USB power source, such as the power supply voltage of the LED lamp is unstable, according to many customers reflect the use of this class USB power prone to the phenomenon does not work, it is worth noting!
Such a power supply voltage instability, lamp beads are very sensitive, prone to such power lamp beads can not start because the lights with pcb version is a resistance, during transmission, the power signal and data signal are in the process of transfer of reduced\'s sake.
Second: If the lights do not work, check \'controller / power\' if there is a failure? (If this does not solve the problem, please send the relevant controller and power supply and connectors picture to me, I will solve the problem for you, until you are satisfied)
Third: Check \'led strip\' point of both ends of the connection, do not let them stick together with each other. Like I send pictures of the same.
Fourth, pay attention to the connection should be compact, but also close enough connection there may be led does not light phenomena.
1. LED Strip Lights update quality all the time, we will send updated vertions PCB strip to you, functions are the same. If mind, please contact us to confirm the newest vertions.
2. LED Strips are 0.5m per segment solder together, 1 meter are 2 pieces 0.5m solder together, 5 meters is solder by 10pcs 0.5m.
